Step-by-Step Guide to Replacing the Bearing on an LG Washing Machine

If you’ve noticed unusual noises coming from your LG washing machine during the spin cycle, it could be a sign that the bearing needs to be replaced. The bearing is a crucial component that allows the drum to spin smoothly, and over time, it can wear out or become damaged. Fortunately, replacing the bearing is a relatively straightforward process that can be done at home with a few basic tools.

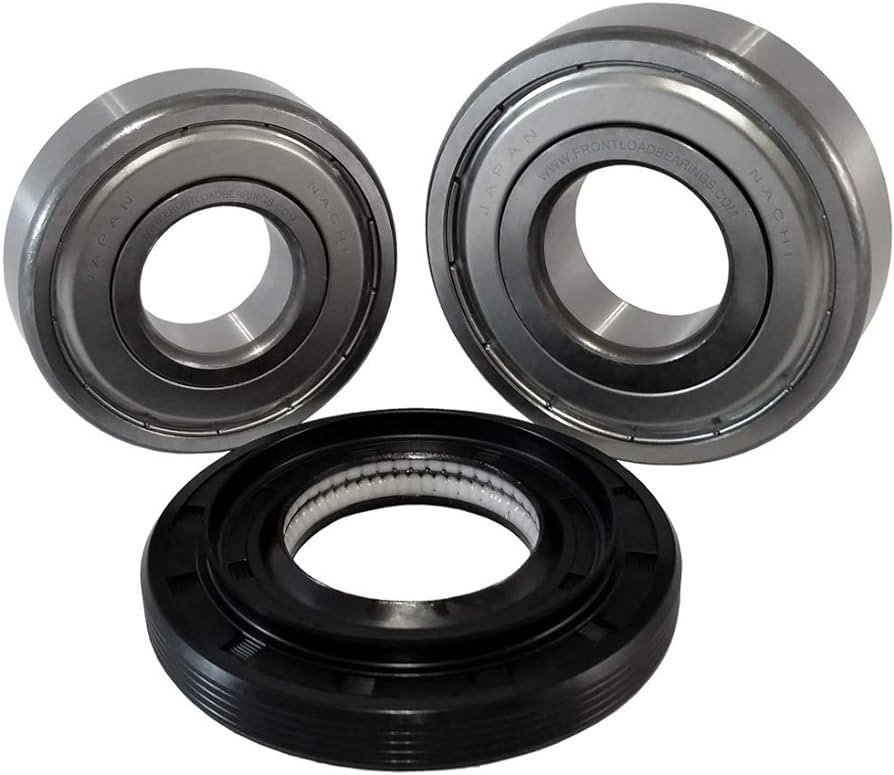

Before you begin, it’s important to gather the necessary materials. You will need a replacement bearing kit, which can be purchased from an appliance parts store or online. Additionally, you’ll need a screwdriver, pliers, a socket wrench, and a hammer. It’s also a good idea to have a towel or small container to catch any water that may spill during the process.

To start, disconnect the power supply to the washing machine and turn off the water supply valves. Next, remove any clothing or other items from the drum, and carefully tilt the machine back to gain access to the underside. Locate the drive belt and remove it by loosening the tension and sliding it off the motor pulley.

Once the belt is removed, you can access the drum pulley, which is connected to the bearing. Use a screwdriver to remove the screws holding the pulley in place, and then use pliers to detach it from the drum. Set the pulley aside, and you will see the bearing assembly.

To remove the old bearing, use a socket wrench to loosen and remove the bolts holding it in place. You may need to tap the bolts gently with a hammer to loosen them. Once the bolts are removed, carefully lift out the old bearing assembly. Note the position of any spacers or washers, as these will need to be placed correctly in the new bearing assembly.

With the old bearing removed, it’s time to install the new replacement bearing. Place the new bearing assembly into the designated slot, ensuring that any spacers or washers are in the correct position. Use the socket wrench to tighten the bolts and secure the new bearing in place. Be careful not to overtighten the bolts, as this can cause damage.

Once the new bearing is securely in place, reattach the pulley to the drum using the screws and pliers. Then, slide the drive belt back onto the motor pulley and ensure it is properly tensioned. Carefully lower the washing machine back down and turn on the water supply valves and power supply.

That’s it! You’ve successfully replaced the bearing on your LG washing machine. Run a test cycle to ensure everything is working smoothly, and enjoy the quiet and efficient operation of your newly repaired machine.

Step 1: Gather the necessary tools

To replace the bearing on your LG washing machine, you will need the following tools:

1. Screwdriver

A screwdriver will be necessary to remove any screws holding the washing machine together.

2. Pliers

Pliers will come in handy for removing retaining rings or other small parts.

3. Wrench

You may need a wrench to loosen or tighten nuts and bolts during the replacement process.

4. Hammer

A hammer may be needed to gently tap or knock parts into place.

5. Grease

You will need some grease to lubricate the new bearing before installing it.

Make sure to gather all of these tools before starting the replacement process to ensure a smooth and efficient repair.

Step 2: Unplug the washing machine

Before starting the process of replacing the bearing on your LG washing machine, it is crucial to ensure your safety. To do so, the first step is to unplug the washing machine from the electrical outlet.

Making sure the machine is unplugged will prevent any potential electric shocks or accidents while working on the appliance. This step is especially important when dealing with parts that require disassembly and may expose live wires.

Locate the power cord on the back of the machine and trace it to the electrical outlet. Carefully pull the plug out of the outlet to disconnect the power supply to the washing machine.

Note: It is always a good practice to leave the washing machine unplugged for a significant amount of time before starting any repairs or maintenance tasks.

Why unplug the washing machine?

Unplugging the washing machine ensures your safety by eliminating the risk of electrical shock. Working with live wires can be dangerous and should be avoided. Unplugging the machine also saves energy and avoids any accidental start-ups while you’re working on the appliance.

What to do if the power cord is inaccessible?

If the power cord is behind the machine or out of reach, you may need to pull the machine away from the wall to access it. Be careful not to damage the cord or the machine while doing so.

Remember: Safety should always be the top priority when working with electrical appliances. By unplugging the washing machine, you are taking a necessary precaution to protect yourself and prevent any accidents from occurring.

Step 3: Disconnect the water supply hoses

Before replacing the bearing on your LG washing machine, you’ll need to disconnect the water supply hoses. This will prevent any water from leaking out during the repair process.

Here’s how to disconnect the water supply hoses:

Now that the water supply hoses are disconnected, you can proceed with replacing the bearing on your LG washing machine. Make sure to follow the next steps carefully to ensure a successful repair.

Step 4: Remove the top and back panels

Before you can access the bearing, you’ll need to remove the top and back panels of your LG washing machine. Follow these steps to do so:

1. Unplug the washing machine

Before starting any repairs, always make sure to unplug the washing machine from the power outlet. This will prevent any accidents or injuries.

2. Remove the top panel

Using a screwdriver or a similar tool, locate and remove the screws holding the top panel in place. Once the screws are removed, lift the top panel of the washing machine and set it aside.

3. Remove the back panel

Locate the screws holding the back panel in place. These screws are usually located near the edges of the panel. Use a screwdriver to remove these screws and set them aside. Once the screws are removed, carefully lift the back panel away from the washing machine and set it aside.

With the top and back panels removed, you now have access to the inner components of the washing machine, including the bearing.

Note: Make sure to refer to the user manual or online resources specific to your LG washing machine model for detailed instructions on removing the panels as the process may vary between models.

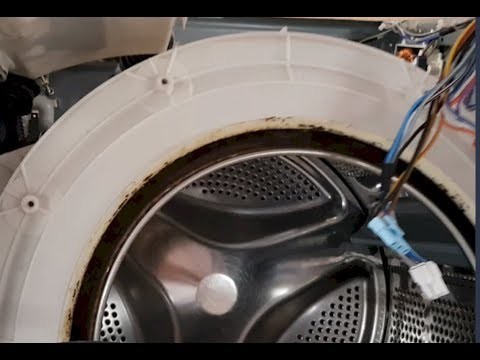

Step 5: Locate and remove the drum

After removing the back panel and disconnecting the electrical connections, it’s time to locate and remove the drum from your LG washing machine. Here’s how to do it:

1. Start by identifying the location of the drum inside the washing machine. The drum is the large cylindrical container that holds your clothes during the washing cycle.

2. Once you’ve located the drum, look for any bolts or screws securing it in place. These fasteners will vary depending on your LG washing machine model, so refer to the user manual or online resources for specific instructions.

3. Use a suitable tool, such as a wrench or screwdriver, to loosen and remove the bolts or screws. Keep them in a safe place, as you’ll need to reinstall them later.

4. With the fasteners removed, gently pull the drum towards you. Be careful not to force it or apply excessive pressure, as this could damage the drum or other components.

5. As you pull the drum out, be mindful of any wires or hoses that may be connected to it. Carefully detach these connections to completely remove the drum from the washing machine.

6. Once the drum is detached, set it aside in a safe and secure location. This will give you access to the bearing, which is the next component you’ll need to replace.

By following these steps, you’ll be able to locate and remove the drum from your LG washing machine, preparing it for the replacement of the bearing in the next steps of the guide.

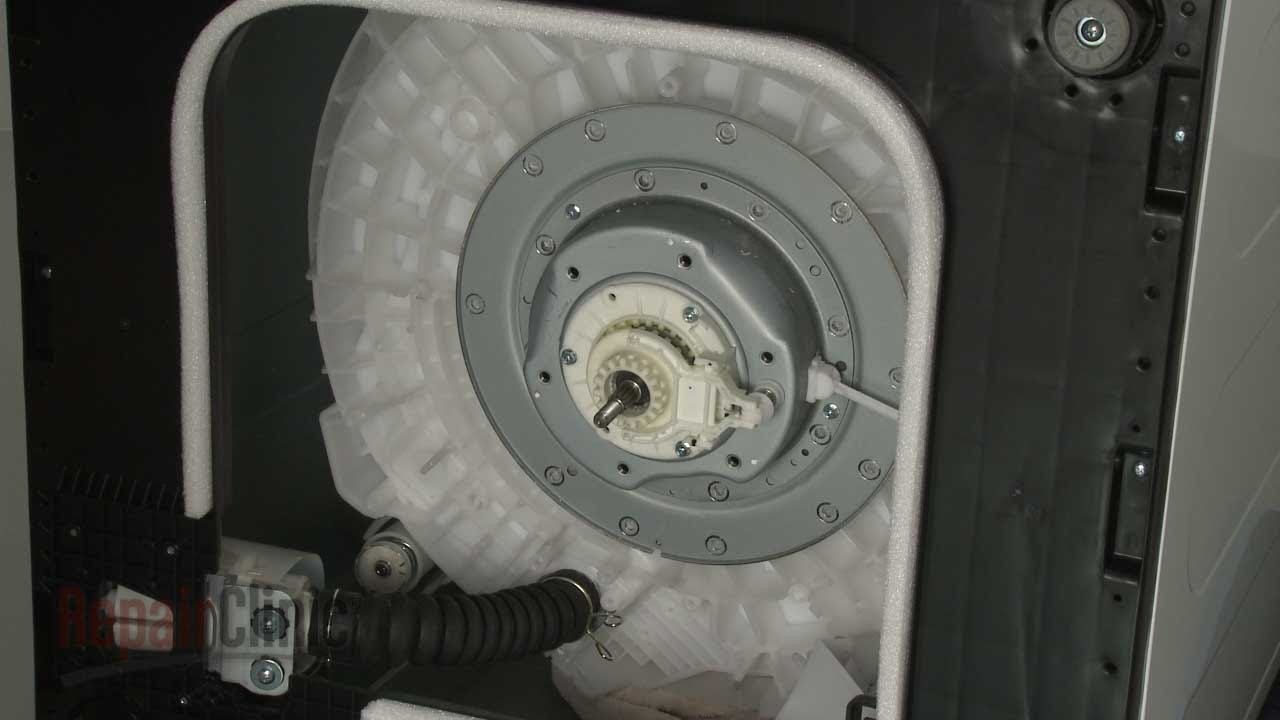

Step 6: Remove the old bearing

Once you have removed the drum assembly from the washing machine, you will be able to access the old bearing. The bearing is typically located at the back of the drum assembly and is secured in place by a retaining ring.

1. Locate the retaining ring on the back of the drum assembly. This ring holds the bearing in place, so it will need to be removed before you can take out the old bearing.

2. Use a pair of pliers or a screwdriver to carefully pry off the retaining ring. Be careful not to damage the drum or the surrounding components while doing this.

3. Once the retaining ring is removed, you will be able to access the old bearing. It may be held in place by screws or clips, so carefully remove any fasteners that are securing the bearing.

4. Once the old bearing is free, carefully lift it out of the drum assembly. Be cautious not to drop it or damage any of the surrounding parts.

5. Inspect the old bearing for any signs of damage or wear. If it is worn out or damaged, it will need to be replaced. If it still appears to be in good condition, you may be able to reuse it, but it is recommended to replace it as a preventative measure.

Note: Removing the old bearing can be a delicate process, so take your time and be patient. If you encounter any difficulties, consult the manufacturer’s instructions or seek professional help.

By following these steps, you will successfully remove the old bearing from your LG washing machine, allowing you to proceed with the replacement process.

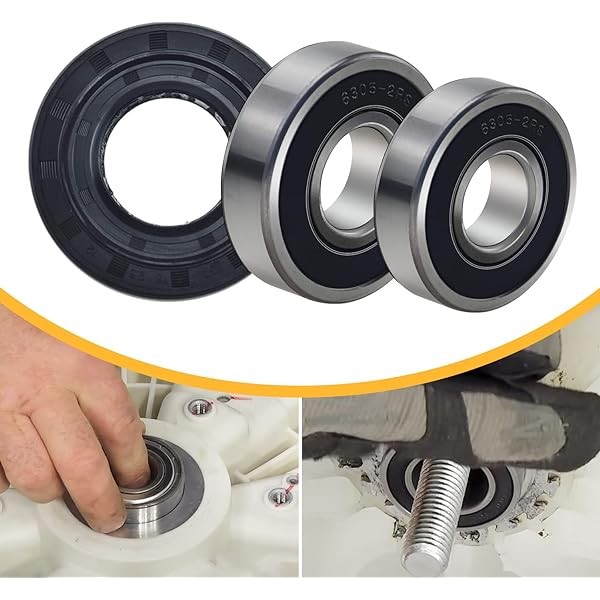

Step 7: Install the new bearing

Now that you have removed the old bearing, it’s time to install the new one. Follow these steps:

1. Prepare the new bearing: Make sure the new bearing is clean and free from any debris or dirt. Apply a thin layer of grease to the inner and outer race of the bearing to ensure smooth operation.

2. Align the bearing: Place the new bearing onto the shaft, making sure that it aligns properly with the bearing housing. The inner race of the bearing should press against the shaft while the outer race fits snugly into the housing.

3. Secure the bearing: Use the appropriate tools (such as a bearing press or a hammer and a block of wood) to gently and evenly press or tap the bearing into place. Make sure not to damage the bearing or its components during this process.

Note: If your washing machine requires a specific torque when installing bearings, consult the manufacturer’s instructions or a professional technician for guidance.

4. Double-check the installation: Once the new bearing is installed, give it a gentle spin to ensure it rotates smoothly and freely. Make sure there are no unusual noises or resistance.

Once you are satisfied with the installation, you can proceed with reassembling the washing machine by following the previous steps in reverse order.

Remember to dispose of the old bearing responsibly, according to local regulations.

Step 8: Reassemble the washing machine and test it

Once you have replaced the bearing in your LG washing machine, it is time to reassemble the machine and test it to ensure that the repair was successful. Follow the steps below to complete the reassembly process:

1. Reattach the drum and belt

Carefully place the drum back into the machine and ensure that it sits properly on the suspension springs. Reattach the belt to the motor pulley and the drum pulley.

2. Reconnect the hoses and wiring

Reconnect any hoses or wiring that you had to disconnect during the disassembly process. Ensure that all connections are secure.

3. Replace the access panel

Put the access panel back on the machine and secure it using the screws or clips provided.

4. Plug in and turn on the machine

Plug the washing machine back into the power outlet and turn it on. Allow the machine to run through a cycle to test that the bearing replacement has been successful.

5. Check for any leaks or abnormal noises

During the test cycle, listen for any unusual noises and check for any leaks around the machine. If you notice any issues, turn off the machine and inspect your work to identify and resolve the problem.

6. Run a full cycle

If the test cycle is successful and there are no leaks or abnormal noises, run a full cycle with a small load of laundry to ensure that the machine is functioning properly.

By following these steps, you should be able to reassemble your LG washing machine after replacing the bearing and ensure that it is working correctly. If you encounter any difficulties or persistent issues, it may be helpful to consult the manufacturer’s guide or contact professional assistance.

Video on the topic

How to Change the Bearings in a LG Washing Machine

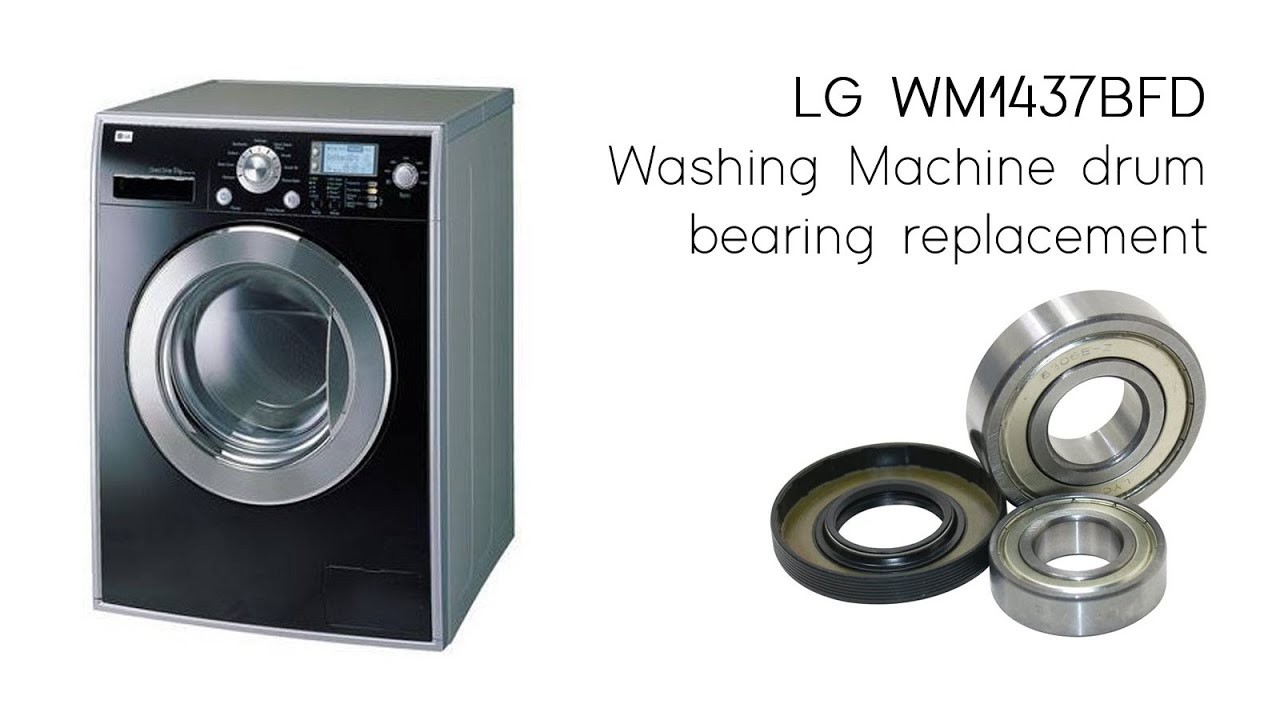

Washing Machine drum bearing replacement LG WM1437BFD
