Guide to Replacing Brushes on an Indesit Washing Machine

If your Indesit washing machine is experiencing issues with its motor, replacing the brushes may be the solution. Over time, the carbon brushes in the motor can wear out, causing the motor to malfunction or stop working altogether. Luckily, replacing the brushes is a relatively simple and inexpensive DIY task that you can do yourself with just a few tools and a little bit of time.

Step 1: Before you begin, make sure to unplug your washing machine and turn off the water supply. Safety should always be a top priority when working with electrical appliances.

Step 2: Locate the motor of your Indesit washing machine. It is typically found at the bottom of the machine, connected to the drum. You may need to remove the back panel or the top cover of the machine to access the motor.

Step 3: Once you have located the motor, you will see two carbon brushes attached to it. These brushes usually have a wire connecting them to the motor. Carefully disconnect the wire from the motor, taking note of how it is connected for future reference.

Step 4: Remove the old brushes from the motor by gently pulling them out. It is common for the brushes to be worn down and have a shorter length compared to new ones.

Step 5: Take your new carbon brushes and insert them into the slots where the old brushes were. Make sure the brushes are securely in place and that they have the same orientation as the old brushes.

Step 6: Reconnect the wire to the motor, following the same connection as before. Make sure the wire is tightly secured to prevent any loose connections.

Step 7: Once you have replaced the brushes and reconnected the wire, carefully put the back panel or the top cover back on your washing machine.

Step 8: Finally, plug your washing machine back in and turn on the water supply. Run a test cycle to ensure that the motor is functioning properly with the new brushes.

By following these step-by-step instructions, you can easily replace the brushes on your Indesit washing machine and restore its motor’s performance. Remember to always exercise caution when working with electrical appliances and consult a professional if you are unsure about any steps.

Step 1: Gather the necessary tools

Before you begin replacing the brushes on your Indesit washing machine, it’s important to gather all the necessary tools. Having everything you need readily available will make the process much smoother and more efficient.

Here are the tools you will need:

• Wrench or pliers: You will need a wrench or pliers to remove any screws or bolts holding the motor in place.
• Screwdriver: Depending on the type of screws used, you will need either a flathead or a Phillips screwdriver to remove the screws that hold the motor housing together.
• New brushes: Make sure you have the correct replacement brushes for your specific Indesit washing machine model. These can usually be purchased from an appliance parts store or online.
• Protective gloves: It’s always a good idea to wear protective gloves to prevent any injuries while handling the motor and other components.

Once you have gathered all the necessary tools, you will be ready to move on to the next step of replacing the brushes on your Indesit washing machine.

Step 2: Turn off the power and unplug the machine

Before starting any work on your Indesit washing machine, it is important to ensure that the power is turned off and the machine is unplugged from the electrical outlet. This will help prevent any electrical shocks or accidents while working on the machine.

To turn off the power, locate the power switch on the machine and switch it to the “Off” position. If your machine doesn’t have a power switch, you can turn off the power by simply unplugging the machine from the electrical outlet.

Once the power is turned off and the machine is unplugged, you can proceed with the next steps of replacing the brushes on your Indesit washing machine.

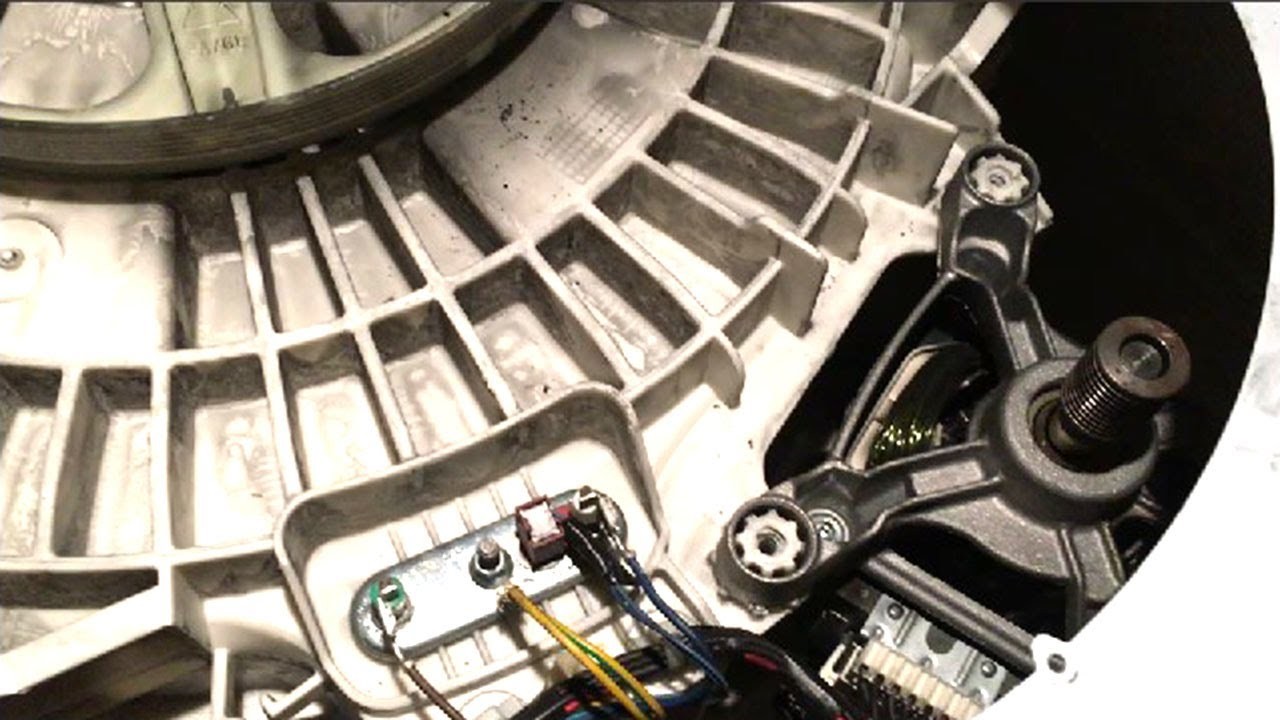

Step 3: Locate the brushes on your Indesit washing machine

Before you begin replacing the brushes on your Indesit washing machine, you need to locate them. The brushes are usually located at the back of the machine, near the motor. In order to access them, you may need to remove a metal panel or cover.

First, make sure your washing machine is unplugged and turned off before starting any repairs. Then, carefully move the machine away from the wall to give yourself some space to work. It’s always a good idea to have someone help you with this step, as washing machines can be heavy.

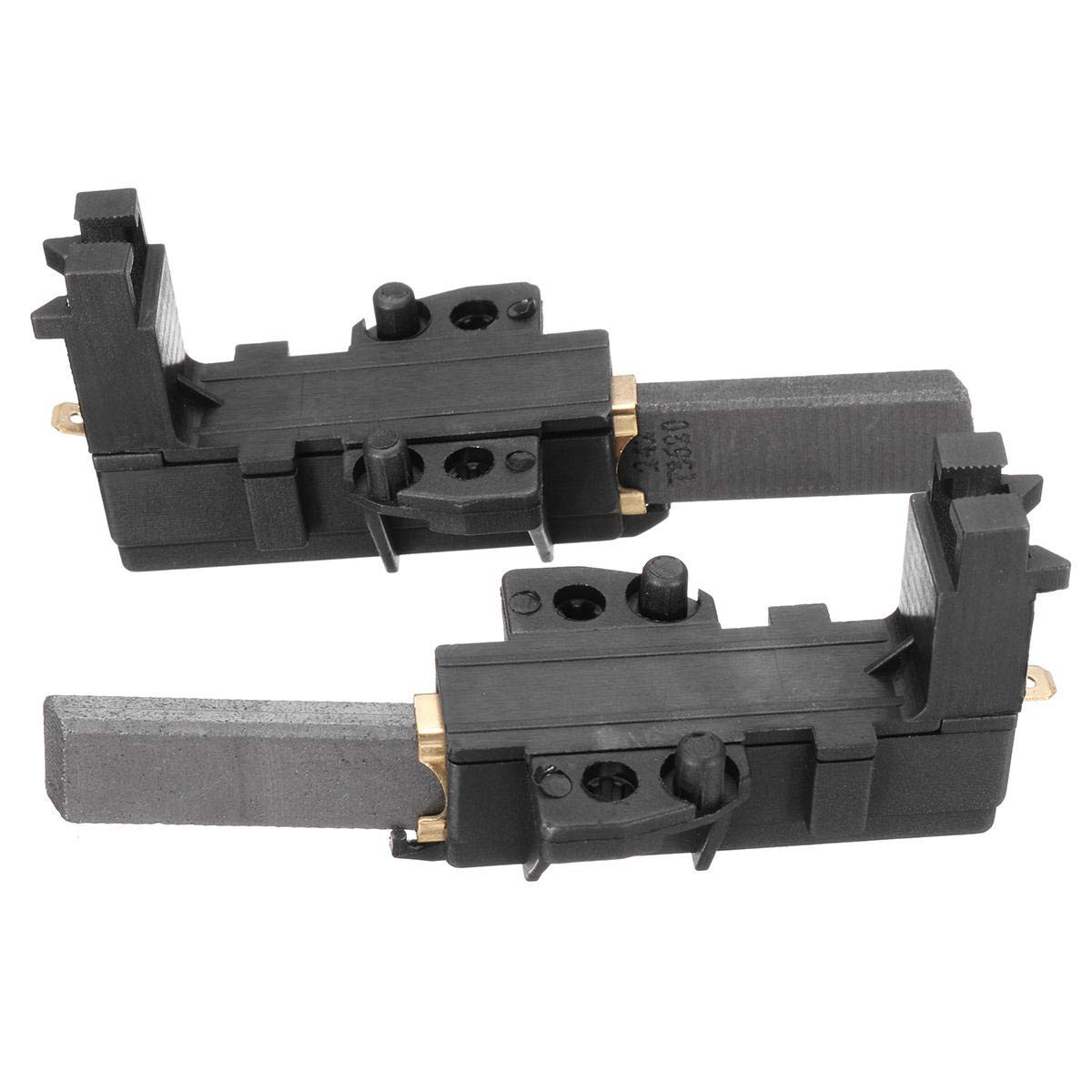

Once you have the machine in a position where you can access the back, take a moment to familiarize yourself with the different parts. Look for the motor, which is the large component that powers the machine. The brushes are small rectangular pieces that make contact with the motor’s armature. They are usually made of carbon and have wires attached to them.

Once you have located the brushes, you may need to use a screwdriver or other tool to remove the metal panel or cover protecting them. Be careful not to damage any other parts of the machine while doing this.

Once you have removed the panel or cover, you should be able to see the brushes clearly. Take note of their position and orientation, as you will need to install the new brushes in the same way.

Now that you have located the brushes on your Indesit washing machine, you are ready to move on to the next step: Step 4: Remove the old brushes.

Step 4: Remove the old brushes

Before you can install new brushes on your Indesit washing machine, you need to remove the old brushes. Follow these steps to complete this process:

1. Disconnect the power: Before starting any work on your washing machine, make sure it is unplugged from the power source. This is essential for your safety.
2. Access the motor: Locate the motor of your Indesit washing machine. It is usually located at the bottom of the machine, behind a protective panel. Using a screwdriver, remove the screws securing the panel and carefully remove it to access the motor.
3. Identify the brushes: Once you have access to the motor, locate the brushes. They are usually two small rectangular blocks with wires attached to them. The brushes may be positioned on opposite sides of the motor, but this can vary depending on your model.
4. Remove the brush connections: Carefully disconnect the wires from the brushes. Depending on the model, the wires may be secured with screws or clips. Use a screwdriver or pliers, if necessary, to release the connections.
5. Remove the brushes: Now that the connections are undone, gently pull the old brushes out of their holders. Take note of the position and orientation of the brushes as you will need this information when installing the new ones.
6. Inspect the brushes: Take a moment to inspect the old brushes for any signs of wear or damage. If the brushes are excessively worn or damaged, it is a good idea to replace them.

Note: It is always recommended to replace both brushes at the same time, even if only one appears to be faulty. This ensures even wear and optimizes the performance of your washing machine.
