Bosch Classixx 5 Disassembly: Step-by-Step Guide

Are you tired of paying for expensive repairs for your Bosch Classixx 5 washing machine? With a little know-how and the right tools, you can save both time and money by performing the repairs yourself. This step-by-step guide will walk you through the process of disassembling your Bosch Classixx 5, making it easy for you to tackle any DIY repair.

Before we dive in, it’s important to note that disassembling your washing machine can void the warranty, so proceed at your own risk. If your machine is still covered by the warranty, it’s best to contact a professional for assistance. However, if your warranty has expired or you’re feeling confident in your DIY skills, let’s get started!

First, gather the necessary tools for the job. You’ll need a screwdriver set with various sizes, pliers, and a pair of gloves to protect your hands. It’s also a good idea to have a camera or smartphone nearby to take pictures of the disassembly process. These pictures can serve as a helpful reference when it comes time to put everything back together.

The next step is to unplug the washing machine from the power source and turn off the water supply. This is crucial for your safety and to prevent any potential damage to the machine. Once that’s done, start by removing the control panel. This can usually be done by removing a few screws or clips. Remember to keep track of where each screw or clip came from, as they may vary in size or shape.

Now that the control panel is removed, you’ll have access to the main control board and other components. Take your time to examine each part and identify any areas that may need repair or replacement.

Continue disassembling the machine by removing the front and side panels. Again, take note of how each piece is connected and use your camera to document the process. This will make it easier for you to reassemble everything correctly.

As you disassemble the Bosch Classixx 5, make sure to take note of any damaged or worn-out parts. These can include belts, hoses, or electrical connections. Once you’ve identified the issue, you can either repair it yourself if you have the necessary skills, or order replacement parts online.

Remember, taking the time to properly disassemble your Bosch Classixx 5 will make the repair process much easier and more efficient. By following this step-by-step guide, you can confidently tackle any DIY repair and have your washing machine back up and running in no time!

Step-by-Step Guide: Bosch Classixx 5 Disassembly for Easy DIY Repair

If you’re experiencing issues with your Bosch Classixx 5 washing machine and need to perform a DIY repair, disassembling the machine is often the first step. Follow this step-by-step guide to safely and effectively take apart your Bosch Classixx 5 washing machine.

Step 1: Preparation

Before starting the disassembly process, make sure to turn off the power supply to the washing machine. Unplug it from the wall to prevent any potential accidents.

Step 2: Remove the Top Panel

Start by removing the top panel of the washing machine. Use a screwdriver to remove the screws that secure the panel in place. Once the screws are removed, lift the panel straight up and set it aside.

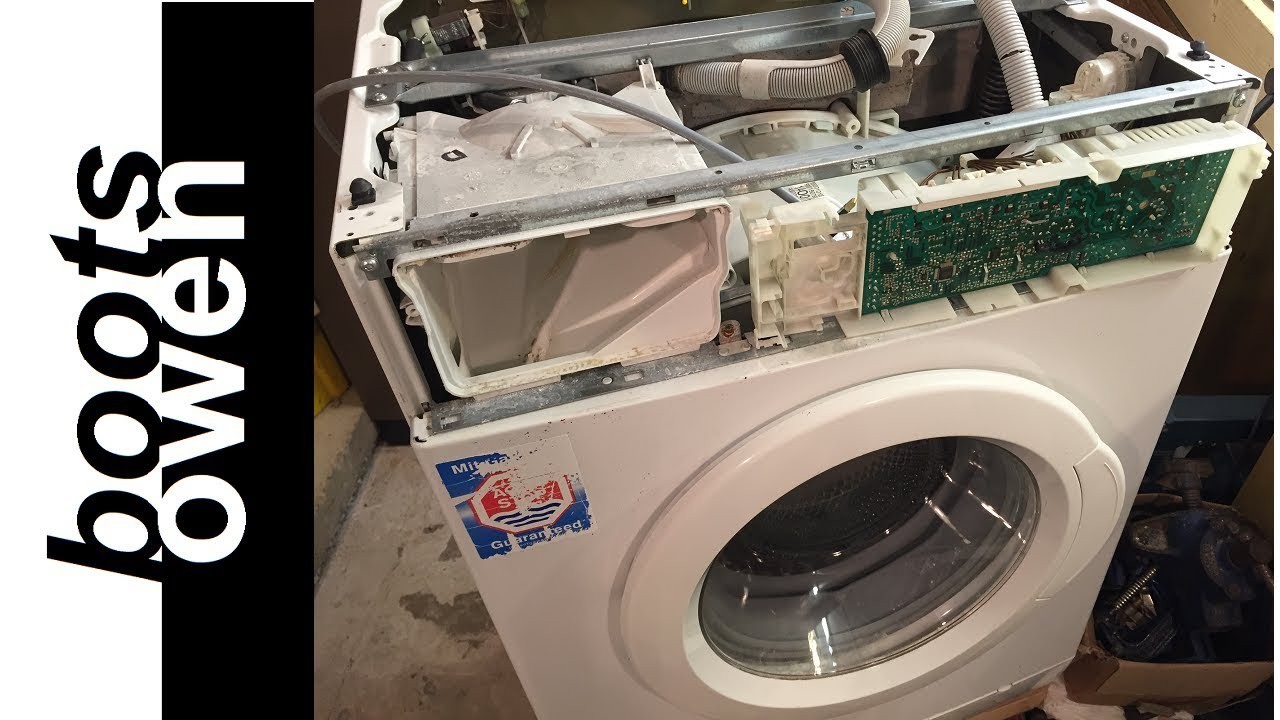

Step 3: Detach the Control Panel

Next, you’ll need to detach the control panel. Carefully slide a putty knife or flathead screwdriver under the edges of the control panel to release the clips. Gently pry the panel off and disconnect any wires connected to it.

Step 4: Remove the Front Panel

Now it’s time to take off the front panel. Locate and remove the screws that secure the front panel to the rest of the machine. Once the screws are removed, pull the front panel towards you and set it aside.

Step 5: Access the Inner Components

With the front panel removed, you’ll have easy access to the inner components of the washing machine. This will allow you to identify and troubleshoot any issues you may be experiencing.

Step 6: Reverse the Process

Once you’ve completed the necessary repairs or troubleshooting, it’s time to put everything back together. Simply follow the above steps in reverse order to reassemble your Bosch Classixx 5 washing machine.

By following this step-by-step guide, you can easily disassemble and reassemble your Bosch Classixx 5 washing machine for DIY repairs. Remember to always exercise caution and make sure to consult professional help if you’re unsure.

Gather the Necessary Tools

Before starting the disassembly process, it is important to gather all the necessary tools. This will ensure that you have everything you need to successfully complete the repair. Here is a list of the tools you will need:

Having these tools on hand will make the disassembly process much easier and ensure that you are prepared for any repairs that need to be made. Once you have gathered all the necessary tools, you are ready to proceed with the next steps of the disassembly.

Disconnect the Power Supply

Before starting any disassembly or repair work on your Bosch Classixx 5 washing machine, it is crucial to disconnect the power supply to ensure your safety. Follow these steps to disconnect the power supply:

Step 1: Unplug the Washing Machine

The first step is to unplug the washing machine from the power outlet. Locate the power cord at the back of the machine and carefully remove it from the socket. This will prevent any potential electric shocks while working on the machine.

Step 2: Turn Off the Circuit Breaker

Next, locate the circuit breaker or fuse box that supplies power to your washing machine. It is usually located near the main electrical panel in your home or apartment. Open the cover of the circuit breaker/fuse box and locate the switch or fuse that corresponds to the washing machine’s power supply.

Switch off the circuit breaker by firmly pushing the switch to the “off” position. If you have a fuse box, carefully remove the fuse that controls the washing machine’s power supply. This will cut off electricity to the machine and ensure your safety during the repair process.

By disconnecting the power supply, you eliminate the risk of electrical accidents. Make sure to keep the power supply disconnected throughout the entire disassembly and repair process to avoid any potential mishaps.

Remove the Front Panel

Removing the front panel of your Bosch Classixx 5 washing machine is a necessary step in the disassembly process for easy DIY repair. Here’s how you can do it:

Tools you’ll need:

• Phillips screwdriver
• Torx screwdriver

1. Start by unplugging the washing machine from the power outlet to ensure safety.

2. Locate the screws that are holding the front panel in place. They are usually located at the top corners of the panel.

3. Use a Phillips screwdriver to remove the screws. Set them aside in a safe place so you don’t lose them.

4. Once the screws are removed, gently pull the front panel forward. You may need to wiggle it a bit to loosen it from the rest of the machine.

5. Carefully lift the front panel upwards to detach it completely from the machine. Be mindful of any wiring or hoses that may still be connected.

Important note:

Before removing the front panel, make sure to consult the user manual or any online resources specific to your Bosch Classixx 5 model. This will ensure that you follow the correct procedure and avoid any damage.

Once the front panel is removed, you will have access to the inner workings of your Bosch Classixx 5 washing machine, making it easier to diagnose and fix any issues. Remember to always exercise caution and refer to the appropriate resources for guidance.

Access the Drum and Motor

To access the drum and motor of your Bosch Classixx 5 washing machine, follow these steps:

1. Remove any clothes or items from the washing machine and unplug it from the power source.
2. Open the door of the washing machine and locate the screws that secure the front panel.
3. Using a screwdriver, remove the screws and carefully detach the front panel from the washing machine.
4. Once the front panel is removed, you will have access to the drum and motor.
5. If you need to remove the drum for repair or maintenance, carefully disconnect the wiring harnesses and remove any screws or clamps that secure the drum in place.
6. With the drum and motor exposed, you can now perform any necessary repairs or maintenance tasks.

Remember to take precautionary measures, such as wearing gloves or safety goggles, when working on the drum and motor to avoid any injuries.

Note: If you are not confident in disassembling your washing machine or performing repairs, it is recommended to consult a professional technician.

Detach the Drum Belt

To disassemble the Bosch Classixx 5 washing machine and access the drum, you will need to detach the drum belt. Follow these steps to do so:

1. Turn off the washing machine and unplug it from the power outlet.
2. Remove the back panel of the machine by unscrewing the screws that hold it in place.
3. Locate the drive belt that wraps around the drum and the motor.
4. Using a wrench or pliers, loosen the tension on the belt by moving the motor away from the drum.
5. Once the tension is released, carefully slide the belt off the drum and motor pulleys.

With the drum belt detached, you can now proceed with the necessary repairs or maintenance on your Bosch Classixx 5 washing machine.

Remove the Motor

To access and remove the motor in your Bosch Classixx 5 washing machine, follow these steps:

Step 1: Disconnect the Power

Before starting any repairs, make sure you disconnect the power supply to the washing machine. Unplug it from the electrical outlet or turn off the circuit breaker.

Step 2: Remove the Back Panel

Use a screwdriver to unscrew and remove the screws securing the back panel of the washing machine. Once the screws are removed, gently lift and remove the back panel to expose the internal components.

Step 3: Locate the Motor

The motor is usually located at the bottom of the washing machine, near the drum. It is connected to the drum and the main control board by wires and belts.

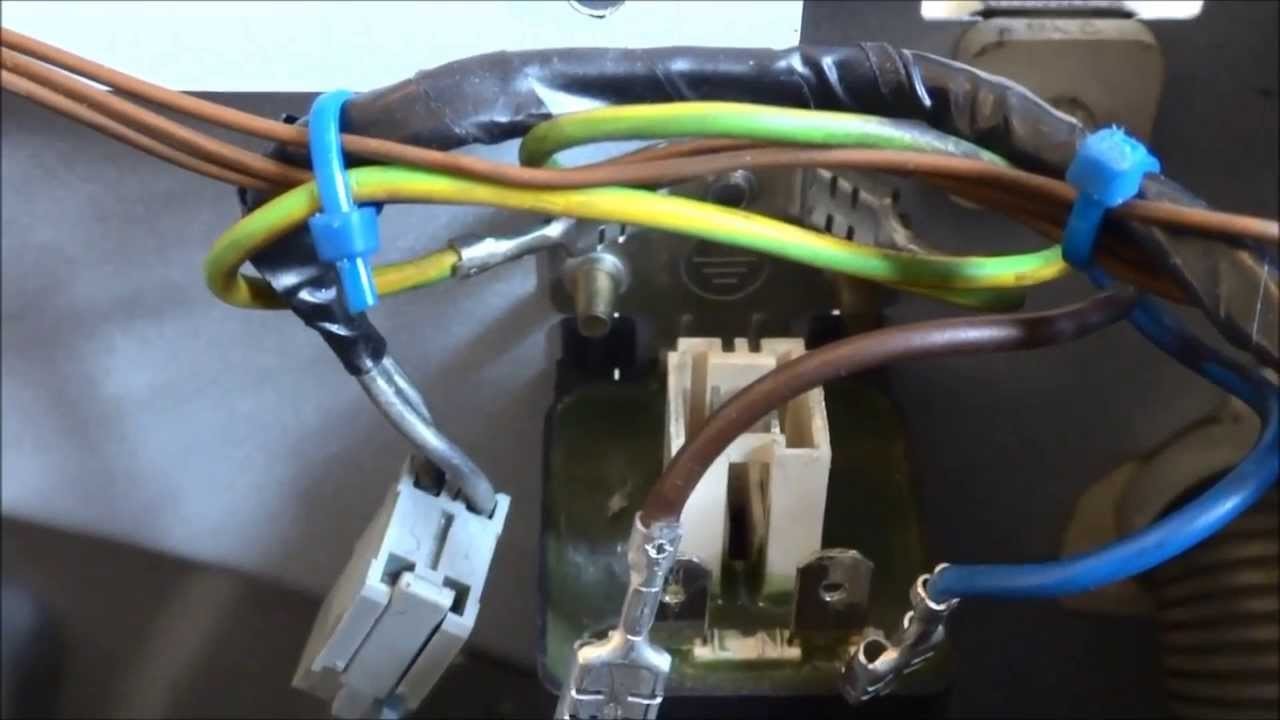

Step 4: Disconnect the Wires

Carefully disconnect the wires connected to the motor. Take note of the wire placements or take a photo for reference, so you can easily reconnect them later.

Step 5: Release the Belt

If your washing machine has a belt system connecting the motor to the drum, you will need to release the tension on the belt. Locate the belt tensioner and use a wrench or a screwdriver to loosen it, allowing the belt to come off the motor pulley.

Step 6: Remove the Motor

Once the wires and belt are disconnected, you can now remove the motor. Carefully lift the motor away from its housing, ensuring that you do not damage any surrounding components. You may need to wiggle it gently to free it from any remaining connections.

With the motor removed, you can now proceed with any repairs or replacements necessary. When reinstalling the motor, make sure to connect the wires correctly and reattach the belt if applicable. Reassemble the back panel of the washing machine and plug it back into the power supply once you have finished all repairs.
